The page contains diagrams and tables of the location of fuses and relays for the DAF XF 105 truck. Information on the purpose of each element is provided, which helps to quickly find and eliminate faults in the electrical system. The manual is useful for diagnosing problems with lighting, engine, ABS, air conditioning and other vehicle systems.
Fuses and Relays in the cabin of the DAF-XF 105

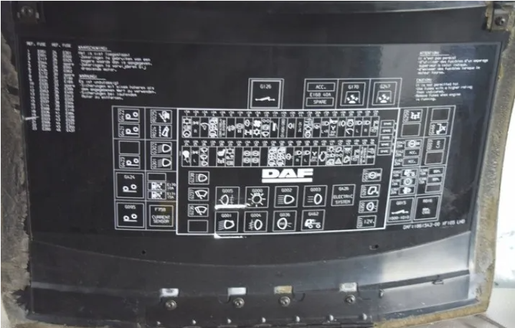

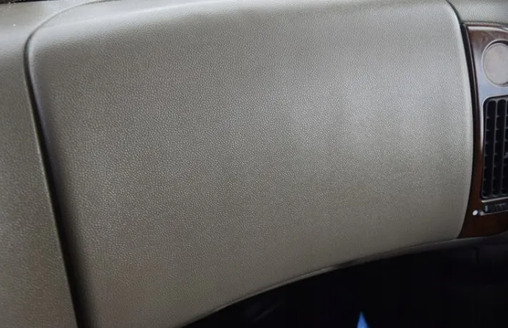

To access it, you need to remove the protective cover, on the inside of which there is a diagram indicating the elements in the block.

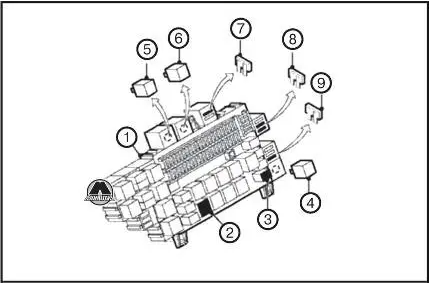

- Fuse box
- Relay
- Mini relay
- Relay
- Electronic trailer sensor
- Relay
- 40A fuse.
- 25A fuse
- 7.5A fuse.
Description of the fuse box DAF-XF 105
E000 Left side lights
E001 Right side lights
E004 Left low beam headlight
E005 Right low beam headlight
E007 High beam and high beam indicator lamp on passenger side
E008 Spotlights
E009 Front fog lights
E010 Rear fog lights
E013 Brake lights
E016 Reversing lights, differential, power take-off, low range lock
E023 Traction assist switch, tachograph clock, interior heater timer
E025 Windscreen wipers, headlight washers
E026 Cigarette lighter, 24 V portable lamp socket, electric door locks
E027 24/12 V converter
E028 Interior lighting, storage compartment
E030 Horn, cab suspension, sunroof, table lighting
E031 Heater fan, air conditioning
E033 Electric window lowering motor, passenger side
E034 Electric window lowering motor, driver side
E035 Steering column
E036 24 V socket
E037 Ignition switch, G015 relay
E043 ABS/EBS, towed vehicle
E044 Mirror heating and adjustment
E048 Power supply, towed vehicle
E051 ECAS with wheel arrangement "6x2"
E052 Work light, seat
E053 ECAS diagnostic socket (16-pin)
E062 ECAS lifting mechanism
E084 Lighting
E091 Heating element, air dryer, fuel tank, seat heating, socket for portable lamp on seat
E108 VIC (Vehicle Intercom System) intelligent vehicles)
E114 Auxiliary heater
E117 Reading lamp, ashtray, household appliances
E118 Power supply for engine management system relay
E142 Additional equipment (accessories operating without ignition on)
E145 AGC-A
E157 AGS (centralized lubrication system)
E163 Additional equipment (accessories operating with ignition on)
E168 Additional microwave devices (storage compartment, middle upper)
E170 Fuel heating
E171 Fuel heating
E172 ABS/EBS towed vehicle
E189 EBS
E190 ABS/EBS
E199 ZF-Intarder
E277 VIC (Intelligent Vehicle Center)
E280 VIC (Intelligent Vehicle Center)
E301 Automatic transmission AS Tronic
E350 Electrical systems
E351 Electrical systems
E357 EAS (Exhaust Aftertreatment System)
E368 Controls fifth wheel coupling
E369 12-volt socket
E390 Body Builder Module 1 (BBM)
E396 Body Builder Module 2 (BBM)
E399 Door switches
E400 Door switches
E434 NOx sensor
