Renault DXi11 Engine Wiring Diagram
Renault DXi11 Engine Wiring Diagram - A detailed guide to the electrical diagrams of the DXi11 engine installed in Renault trucks. Includes complete wiring diagrams, information on wiring harnesses, connectors, sensors and electronic control modules. Suitable for fault diagnosis, maintenance and wiring restoration. Ideal for repairers and technicians.

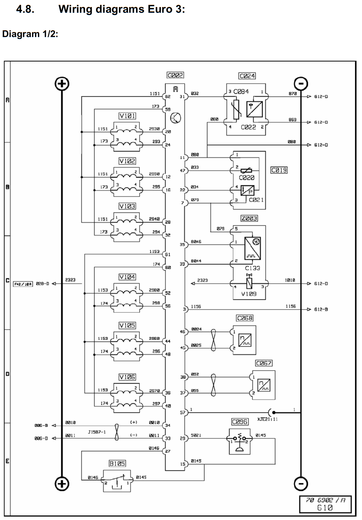

DXi 11 Wiring diagrams Euro 3:
Key to diagram 1/2:
B105 Engine stop control
C019 Boost air temperature and pressure sensor assembly
C020 Boost air temperature sensor
C021 Boost air pressure sensor
C022 Engine oil level sensor
C024 Engine oil pressure and temperature sensor assembly
C067 Engine speed sensor on engine flywheel
C068 Engine speed sensor on camshaft
C084 Engine oil temperature sensor
C096 Speed range selector pressure sensor
C133 Engine cooling fan speed sensor
G002 Engine management control unit
V101 Injector solenoid valve, cylinder number 1
V102 Injector solenoid valve, cylinder number 2
V103 Injector solenoid valve, cylinder number 3
V104 Injector solenoid valve, cylinder number 4
V105 Injector solenoid valve, cylinder number 5
V106 Injector solenoid valve, cylinder number 6
V109 Engine cooling fan speed regulation solenoid valve
Z003 Engine fan regulator assembly

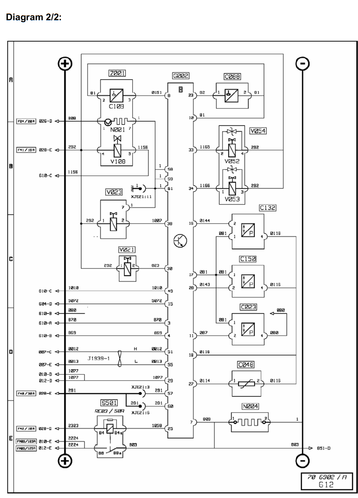

Key to diagram 2/2:
C023 Engine oil pressure sensor
C048 Engine cooling circuit temperature sensor
C088 Engine coolant level sensor
C109 Water present in fuel sensor
C132 Engine booster pressure sensor
C150 Engine block interior pressure sensor
G002 Engine management control unit
N001 Fuel reheater resistor N°2
N004 Air preheating resistor
S501 Air preheating relay
V021 OPTIBRAKE engine brake solenoid valve
V023 Exhaust brake solenoid valve
V052 Splitter solenoid valve
V053 Rail relay control solenoid valve
V054 Rail relay and range splitter control assembly
V108 Air dryer bleed solenoid valve
Z001 Fuel reheating assembly

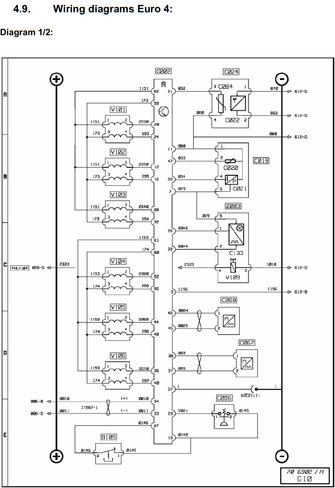

DXi 11 Wiring diagrams Euro 4:
B105 Engine stop control
C019 Boost air temperature and pressure sensor assembly
C020 Boost air temperature sensor
C021 Boost air pressure sensor
C022 Engine oil level sensor
C024 Engine oil pressure and temperature sensor assembly
C067 Engine speed sensor on engine flywheel
C068 Engine speed sensor on camshaft
C084 Engine oil temperature sensor
C096 Speed range selector pressure sensor
C133 Engine cooling fan speed sensor
G002 Engine management control unit
V101 Injector solenoid valve, cylinder number 1
V102 Injector solenoid valve, cylinder number 2
V103 Injector solenoid valve, cylinder number 3
V104 Injector solenoid valve, cylinder number 4
V105 Injector solenoid valve, cylinder number 5
V106 Solenoid valve, injector cylinder number 6
V109 Engine cooling fan speed regulation solenoid valve
Z003 Engine fan regulator assembly

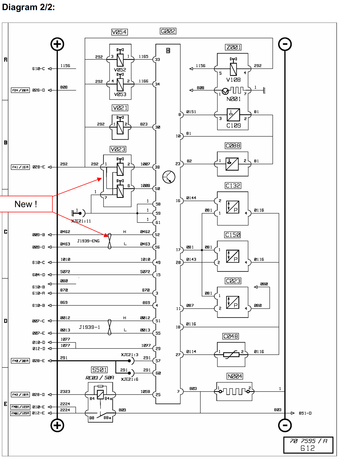

Key to diagram 2/2:
C023 Engine oil pressure sensor
C048 Engine cooling circuit temperature sensor
C088 Engine coolant level sensor
C109 Water present in fuel sensor
C132 Engine booster pressure sensor
C150 Engine block interior pressure sensor
G002 Engine management control unit
N001 Fuel reheater resistor N°2
N004 Air preheating resistor
S501 Air preheating relay
V021 OPTIBRAKE engine brake solenoid valve
V023 Exhaust brake solenoid valve + turbocharger discharge valve solenoid valve
V052 Splitter solenoid valve
V053 Rail relay control solenoid valve
V054 Rail relay and range splitter control assembly
V108 Air dryer bleed solenoid valve
Z001 Fuel reheating assembly

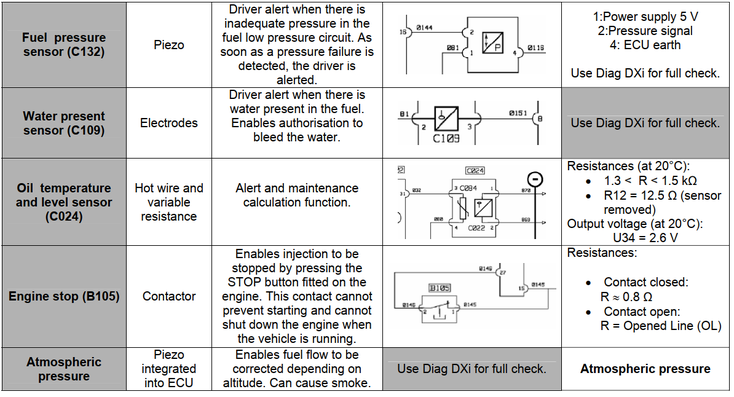

DXi 11 Sensor
Casing gas pressure sensor (C150). Oil pressure sensor (C023). Fan speed sensor. Camshaft (C068) and engine flywheel (C067) sensors. Fuel pressure sensor (C132).
Water present sensor (C109). Oil temperature and level sensor (C024). Atmospheric pressure. Coolant temperature
