Mercedes Actros 2012–2019 Ground Point Locations — locations of all ground points for Actros MP4 (963, 964) models. Detailed information on the body, engine, and electrical system ground connections, useful for repair, diagnostics, and restoration of the electrical system.
B31-1M1 – Left engine tml. 31 terminal stud
B31-1M3 – Left engine tml. 31 terminal stud
B31-2M1 – Right engine tml. 31 terminal stud
B31-2M2 – Right engine tml. 31 terminal stud
BB-31-A – A-pillar circuit 31 terminal stud
BB-31-B1 – Front passenger tml. 31 instrument panel terminal stud
BB-31-F – Driver terminal 31 instrument panel terminal stud
XK-BS – Terminal stud for battery sensor electrical line

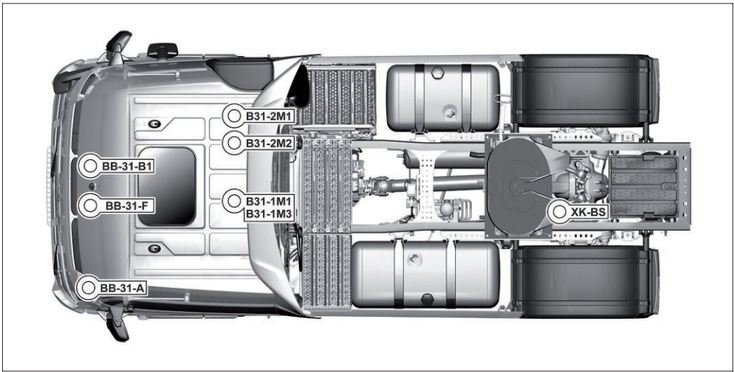

GF00.19-W-2001-01H – Location of left engine compartment ground points
GF00.19-W-2001-02H – Location of right engine compartment ground points
GF00.19-W-2001-04H – Location of left interior compartment ground points
GF00.19-W-2001-08H – Location of frame ground points
GF00.19-W-2001-31H – Location of instrument panel ground points

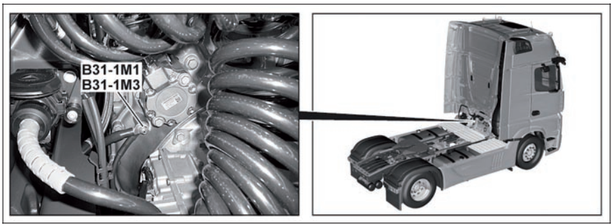

GF00.19-W-2001-01H - Location of left engine compartment ground points
Location of left engine compartmentground points
GF00.19-W-2001-01H
B31-1M1 Left engine tml. 31 terminal stud
B31-1M3 Left engine tml. 31 terminal stud
Location of right engine compartmentground points
GF00.19-W-2001-02H
B31-2M1 Right engine tml. 31 terminal stud
B31-2M2 Right engine tml. 31 terminal stud

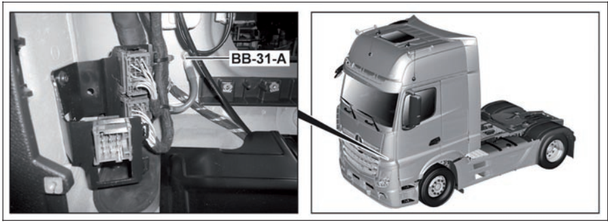

Location of left interior compartmentground points
GF00.19-W-2001-04H
BB-31-A A-pillar circuit 31 terminal stud
Location of frame ground points
GF00.19-W-2001-08H
XK-BS Terminal stud for battery sensor electrical line

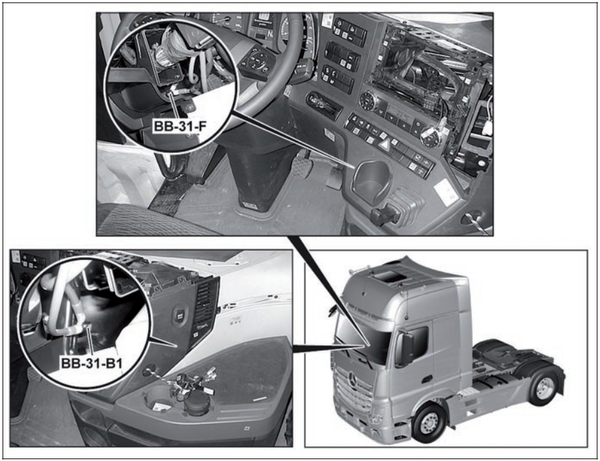

Location of instrument panel groundpoints
GF00.19-W-2001-31H
BB-31-B1 Front passenger tml. 31 instrument panel terminal stud
BB-31-F Driver terminal 31 instrument panel terminal stud
